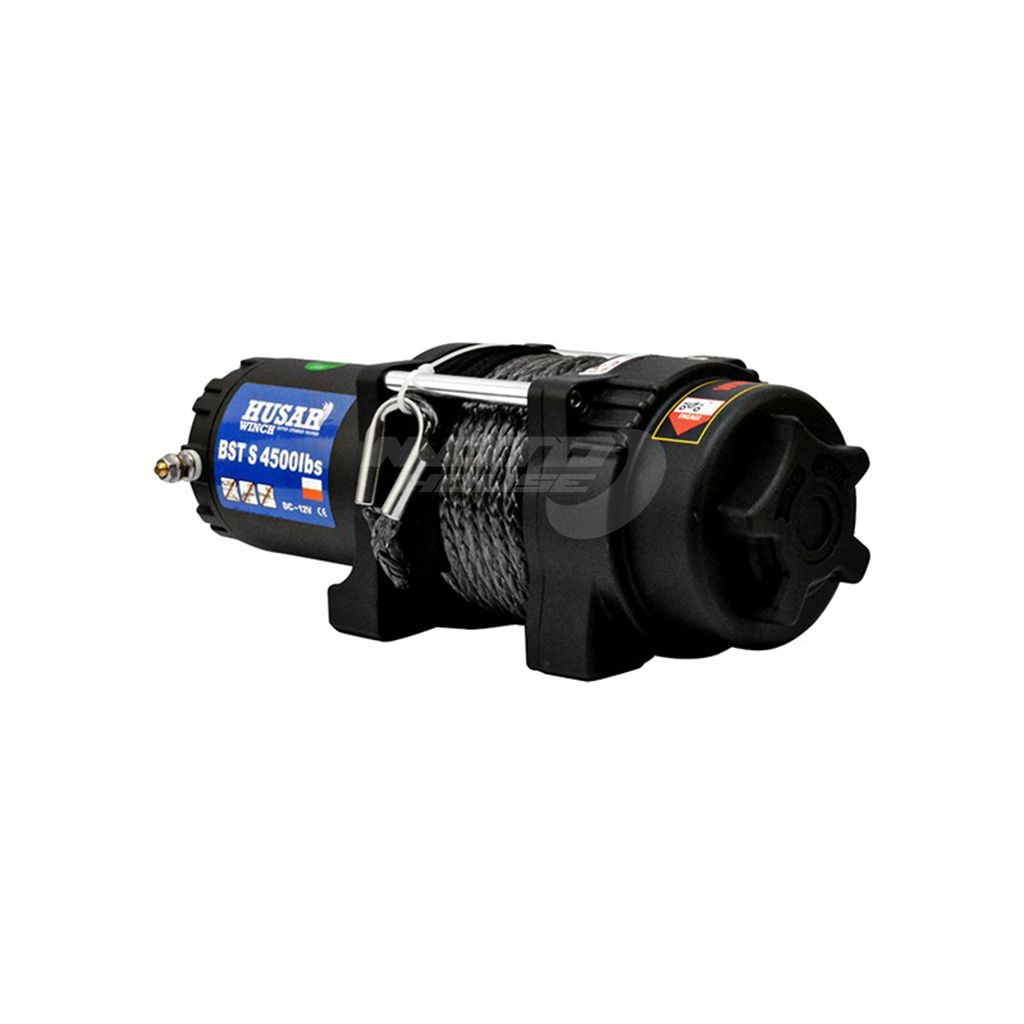

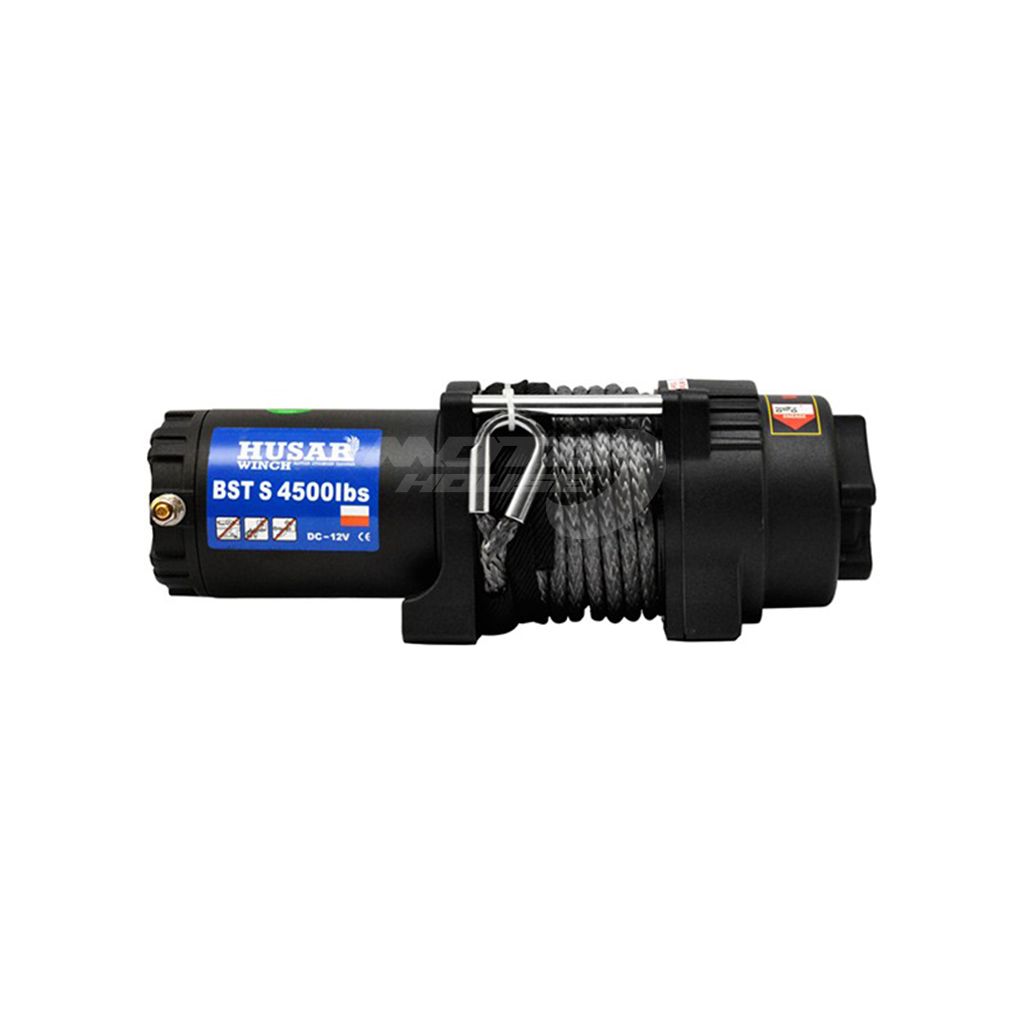

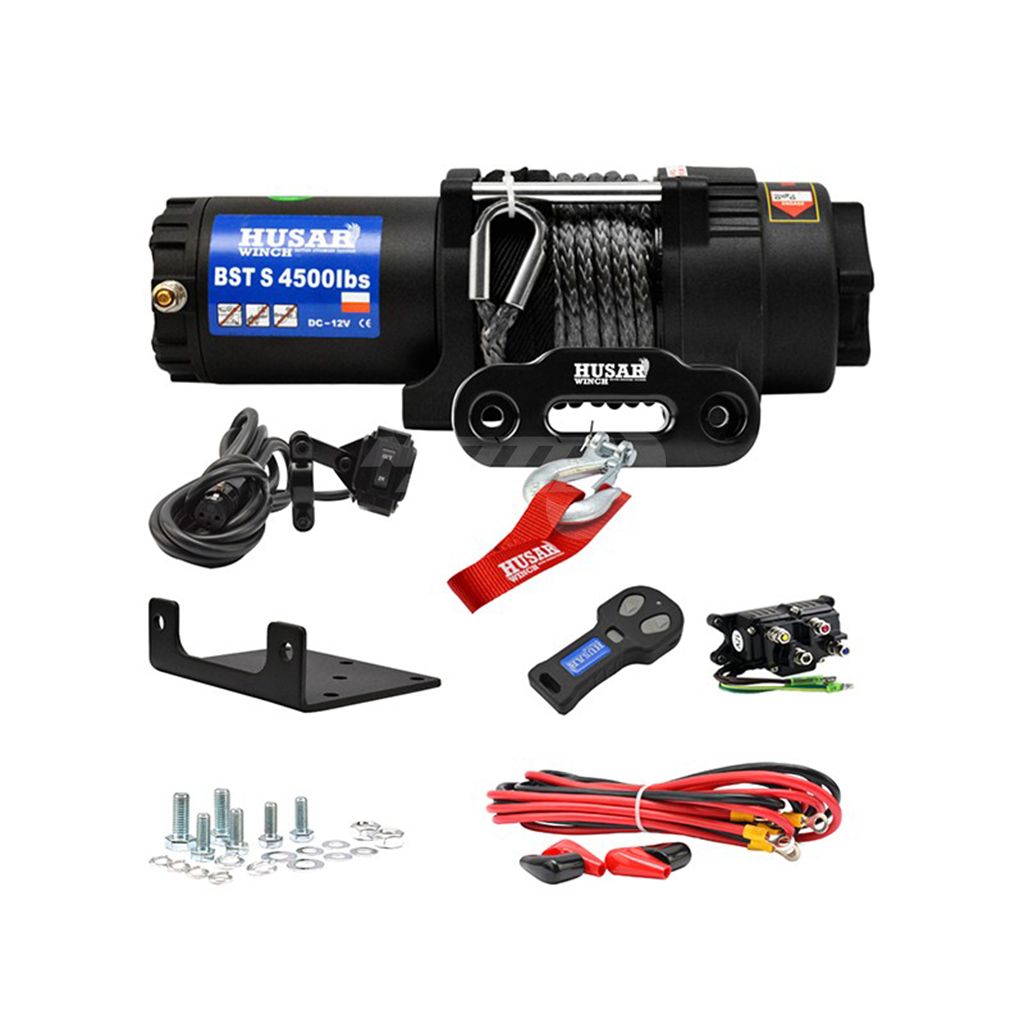

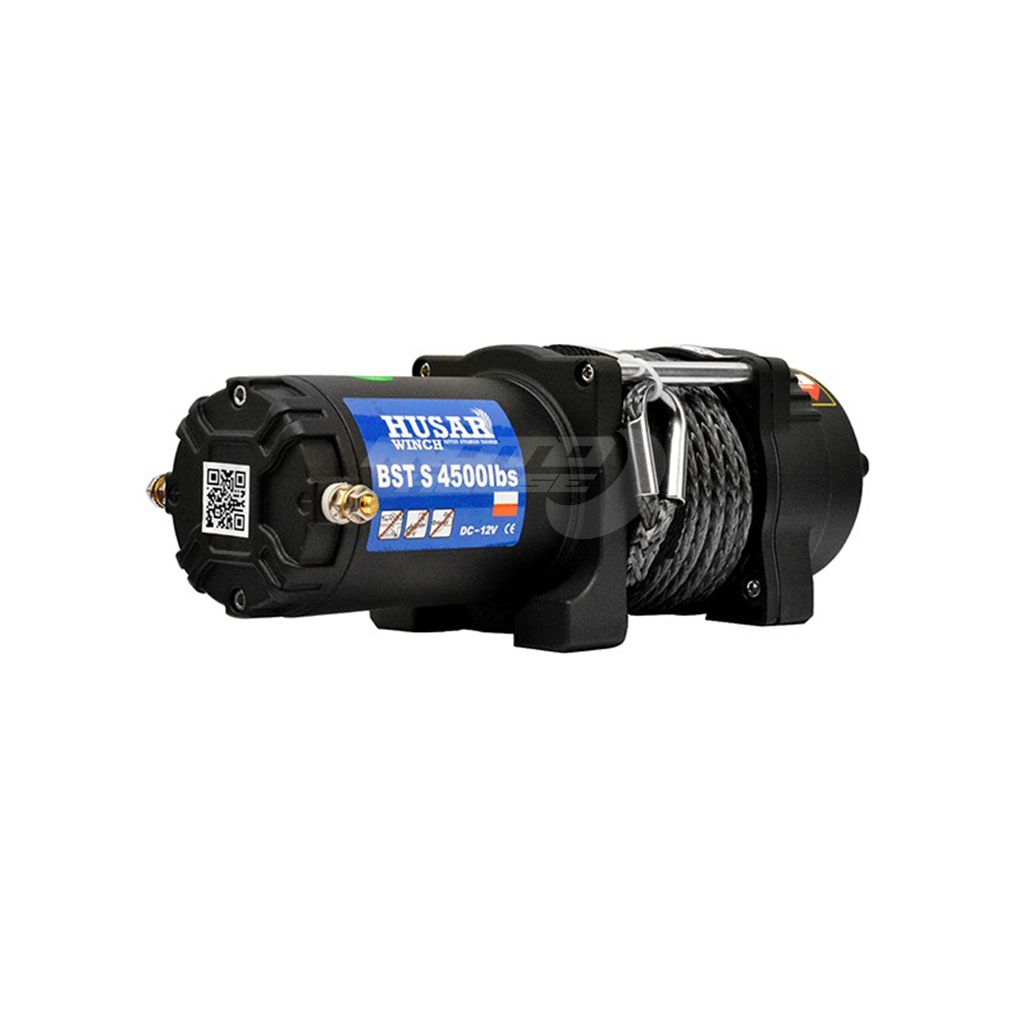

Лебедка HUSAR BST S 4500 Lbs
650.00 лв.
Лебедка HUSAR BST S 4500 Lbs synthetic rope
730.00 лв.
Налично
Описание
| BST S 4500lbs | Technical specifications | ||
| Pull capacity(single line) | 4500lbs / 2041 kg | ||
| Motor 12V | 1,7hp / 1,3 kw | ||
| Controls | Wired / wireless remote control | ||
| Gear ratio | 198:1 | ||
| Brake | Automatic | ||
| Rope | 12 m 5,5 mm | ||
| Fairlead | hawse fairlead | ||
| Net weight | 11 kg | ||
| Mounting bolt pattern | 165mm x 76mm | ||
| Dimensions | (L x W x H) 391mm 114mm x 120mm | ||
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 1000 | 2000 | 3000 | 4500 |
| Kgs | 0 | 454 | 907 | 1360 | 2041 | |
| Line speed | M/min | 4,9 | 3,2 | 2,8 | 2,2 | 1,2 |
| Motor current | Amps | 17 | 70 | 105 | 135 | 210 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 4500 | 3625 | 3010 | 2596 | |
| Kgs | 2041 | 1742 | 1501 | 1319 | ||
| Cable capacity per layer | M | 2 | 4,3 | 7,2 | 12 | |
Допълнителна информация
| Тегло | 10 либ. |
|---|---|
| Марка |
