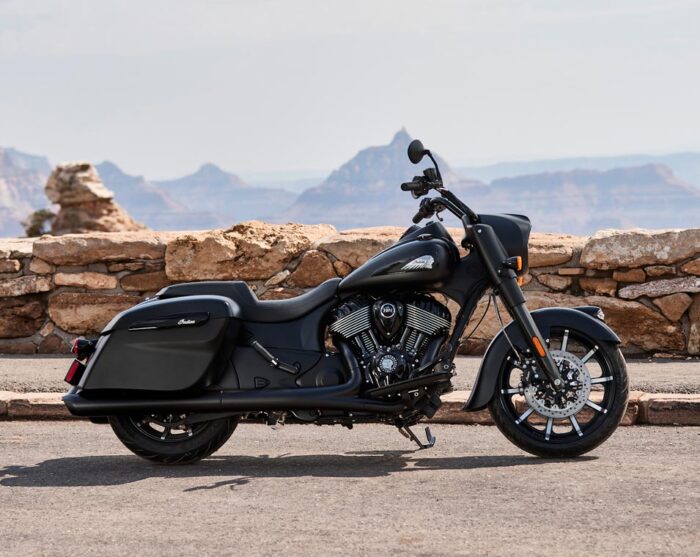

Indian Springfield Dark Horse

Описание



Engine

Engine Type	Thunderstroke 116
Displacement	1890 cc
Bore x Stroke	103.2mm x 113mm
Compression Ratio	11.0:1
Electronic Fuel Injection System	Closed loop fuel injection / 54 mm bore

Performance

Peak Torque RPM	3000 rpm
Peak Torque	171 Nm

Drivetrain

Primary Drive	Gear Drive Wet Clutch
Clutch	Wet, Multi-Plate, Assist

Gear Ratio (Overall)

1st	9.403 : 1
2nd	6.411 : 1
3rd	4.763 : 1
4th	3.796 : 1
5th	3.243 : 1
6th	2.789 : 1
Final Drive	2.2 : 1

Suspension

Suspension: Front – Type/Travel	Telescopic Fork / 119 mm
Suspension: Rear – Type/Travel	Single Shock w/ Air Adjust / 114 mm / 63 mm ride in

Chassis

Brakes/Front	Dual / 300 mm Floating Rotor / 4 Piston Calliper
Brakes/Rear	Single / 300 mm Floating Rotor / 2 Piston Calliper
Tires/Front	Metzeler Cruisetec 130/80B19 66H
Tires/Rear	Metzeler Cruisetec 180/60R16 80H
Wheels	10 spoke contrast cut 19″ x 3.5″ / 16″ x 5″
Exhaust	Split dual exhaust w/ cross-over

Dimensions

Wheelbase	1701 mm
Seat Height	650 mm
Ground Clearance	130 mm
Overall Length	2522 mm
Overall Width	972 mm
Overall Height	1226 mm
Lean Angle	31°
Rake	25°
Trail	133 mm
Fuel Capacity	20.8 liters
GVWR	628 kg
Weight (Empty tank / full of fuel)	344 kg / 358 kg

Допълнителна информация

Марка	INDIAN
Модел	Indian Springfield Dark Horse

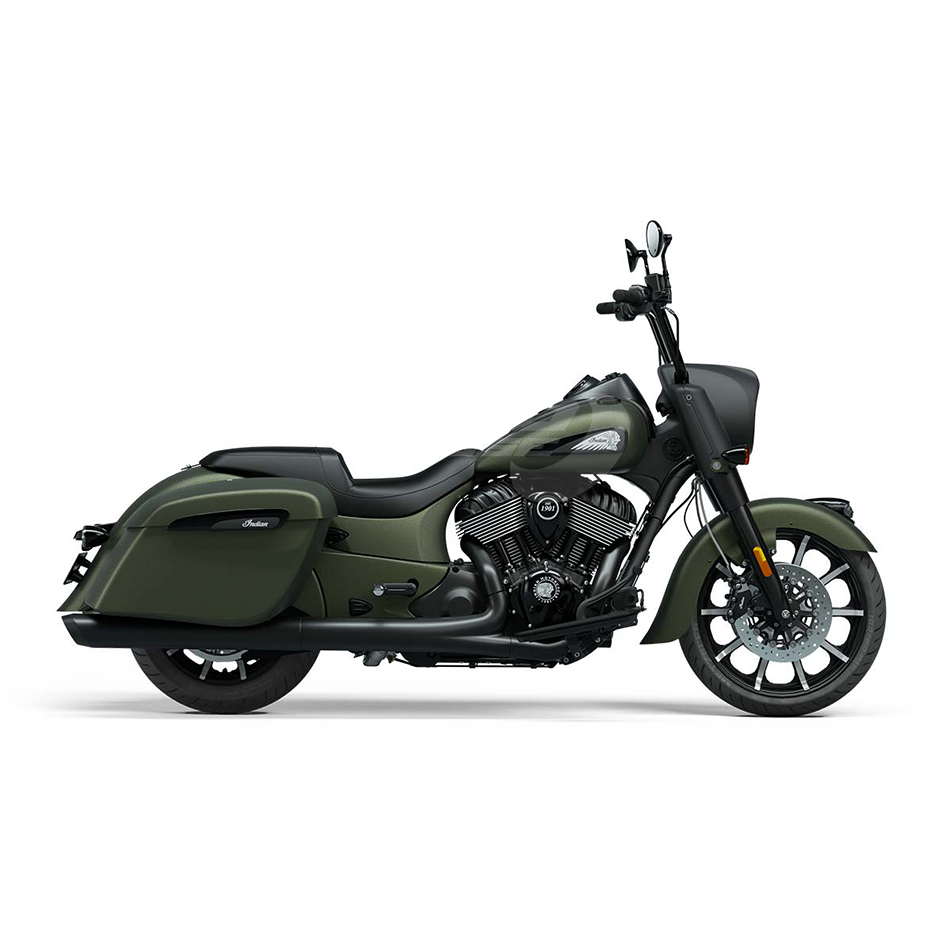

цвят	Black Smoke, Sagebrush Smoke
