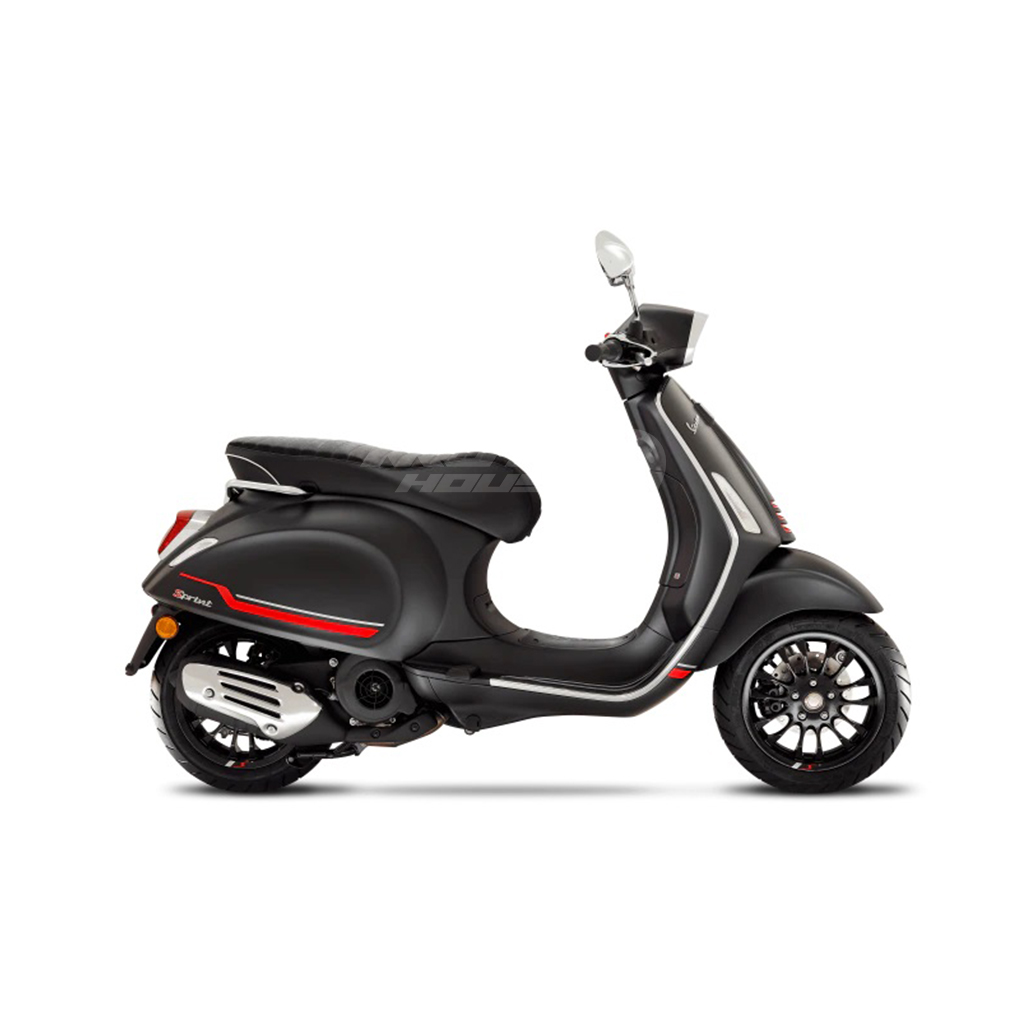

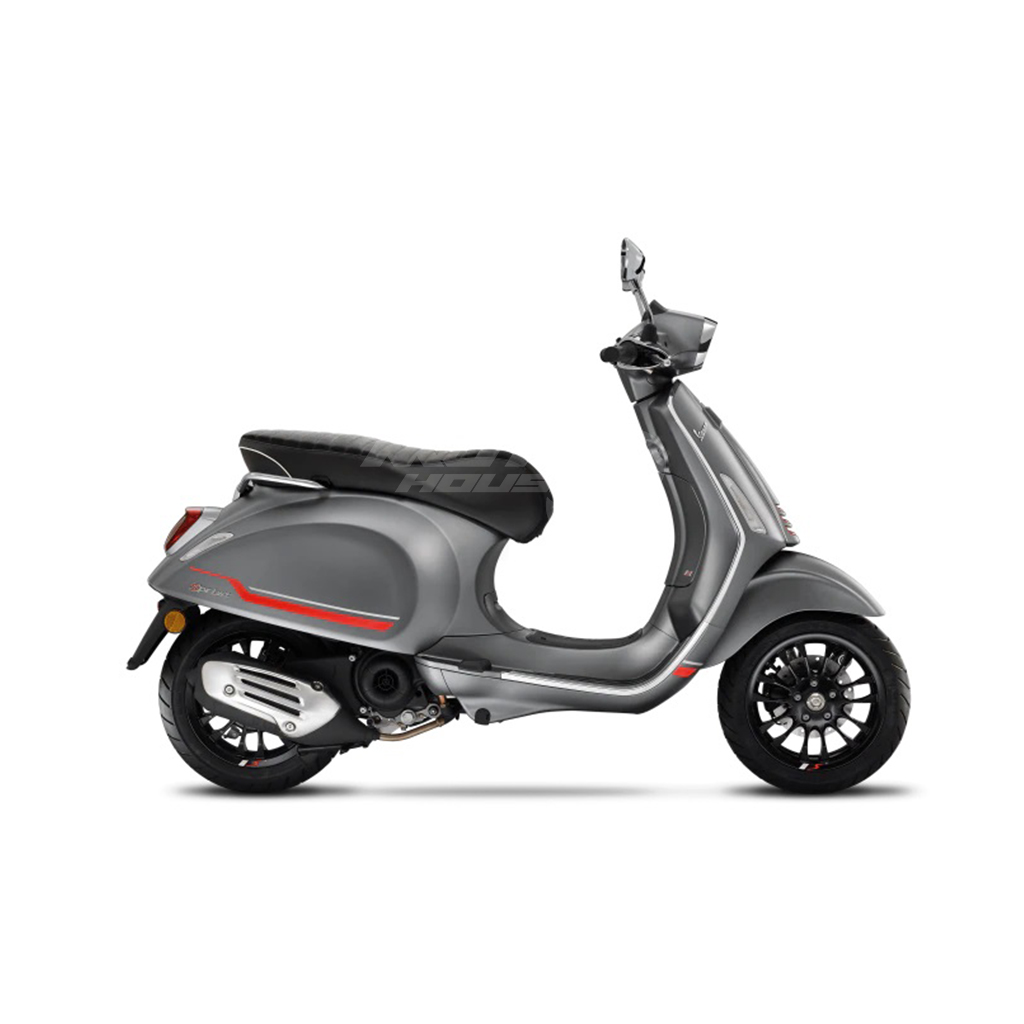

Vespa SPRINT 150 S EURO 5

SPRINT – PRIMAVERA 125 (150) IGET ABS – TECHNICAL SPECIFICATIONS

ENGINE 3-valve 4-stroke single cylinder i-get catalysed
DISPLACEMENT 124 cc (155 cc)
BORE X STROKE 52 mm x 58,6 mm (58 mm x 58,6 mm)
MAX POWER AT THE CRANK
SHAFT
8,1 kW – 11 HP – a 8,000 rpm (9,2 kW – 12,5 CV- 7,750)
MAX TORQUE 10.4 Nm at 6,750 rpm (12.4 Nm a 6,750 rpm)
CONSUMPTION 40 km/l (37 km/l)
CO2 EMISSIONS
COMPLIANCE
60 g/km (63 g/km)
FUEL SYSTEM Electronic Injection
COOLING Forced air
STARTER Electric
GEARBOX CVT automatic with torque server
CLUTCH Automatic dry centrifugal with shock absorbers
LOAD-BEARING STRUCTURE Sheet steel shell with welded structural reinforcements
FRONT SUSPENSION Single arm with helical spring and hydraulic shock absorber
REAR SUSPENSION Helical spring with adjustable preload (4 positions) and single hydraulic
shock absorber
FRONT BRAKE Stainless steel Ø 220 mm disc with hydraulic control
REAR BRAKE Ø 140 mm drum with mechanical control
ABS/ASR SYSTEM ABS at the front wheel only
FRONT TYRE Tubeless 110/70 – 12”
REAR TYRE Tubeless 120/70 – 12”
LENGTH/WIDTH/WHEELBASE 1.870 / 735 / 1.340 mm
SEAT HEIGHT 790 mm
FUEL TANK CAPACITY 8 litres
EMISSIONS COMPLIANCE Euro 5
